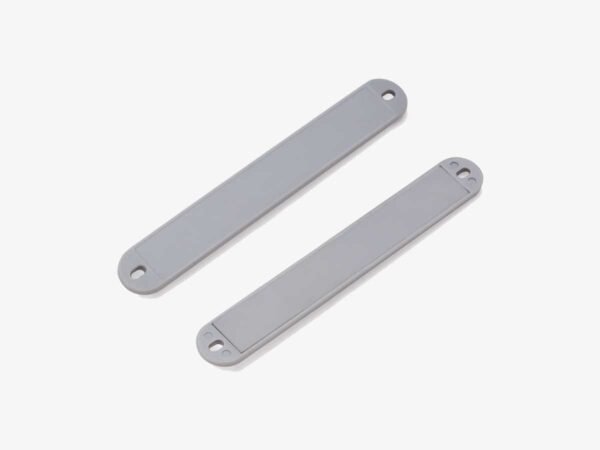

UHF Crate Tag

Label/Tag Dimension (mm) : 120 x 17 x 3 mm ( Hole Dia: 5, 3 )
IC Type: Alien Higgs 3 / Higgs 9
Read Range : Up to 12 Meters (Fixed Reader) / Up to 6 Meters (Handheld Reader)
Operating Temperature: -40 °C to +85 °C

Download Datasheet Enquire Now
Category:

Description

Frequency : 865 – 868MHz
IC Type : Alien Higgs 3 / Higgs 9
Protocol : EPC Class 1 Gen 2 ISO 18000-6C
EPC Memory: 96 bit
User Memory: 512 bit
Read/Write Endurance : 100,000 Cycles
Data Retention : 50 Years
Encasement : ABS
Size(mm) : 120 x 17 x 3 mm ( Hole Dia: 5, 3 )
Weight(g) : 5
Operating Temperature : -40°C to +85°C
Storage Temperature : -40°C to +85°C
Ingress Protection : IP67
Attachment : Rivet/Screw, Foam Adhesive Tape
Certifications : RoHS, REACH & CE (optional)
Typical Application : Non-Metallic Asset Tracking, Manufacturing, Logistics, Plant & Machinery, Plastic Trolley/ Pallet Tracking etc.
Customization Options : Laser Engraving, Encoding, Foam Adhesive
