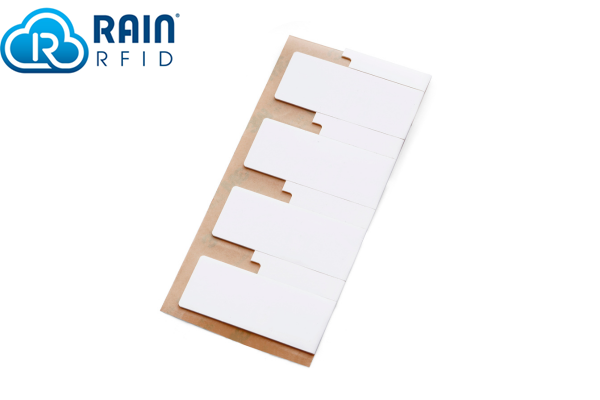

Max On Metal Label

Max On Metal Label

Label Dimension (mm) : 95 x 22 x 1 mm
IC Type : NXP UCODE 8
Read Range from a : Up to 7 Meters (Fixed Reader) / Up to 4 Meters (Handheld Reader)
Operating Temperature : -40 °C to +85 °C

Download Datasheet Enquire Now
Categories: ,

Description

Label Dimension (mm) : 95 x 22 x 1 mm
Surface Material : PET
Frequency : 860-960 MHz
IC Type : NXP UCODE 8
Protocol : EPC Class 1 Gen 2; ISO 18000-6C protocol compliant
EPC Memory : 96 bit
Data retention of IC : 50 Years
Write endurance of IC : 100,000 cycles
Operating Temperature : -40 °C to +85 °C
Storage Temperature : -40 °C to +85 °C
Application : IT Asset Tracking, Metallic Asset Tracking.
Options : Encoding and Printing Barcode/QR Code/LOGO etc.
