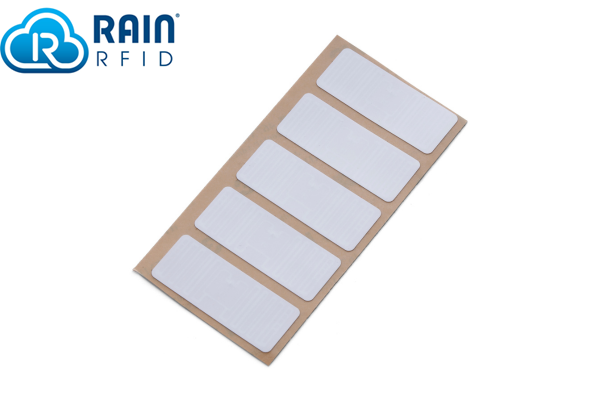

RG-14 Label

Label/Tag Dimension (mm) : 45 x 18 x 0.2 mm
IC Type: NXP UCODE 9
Read Range from a : Up to 4 Meters (Fixed Reader) / Up to 2 Meters (Handheld Reader)
Operating Temperature: -40 °C to +85 °C

Download Datasheet Enquire Now
Categories: ,

Description

Label/Tag Dimension (mm) : 45 x 18 x 0.2 mm
Surface Material: Wet Inlay/Coated Paper /PET
Frequency: 860-960 MHz
IC Type: NXP UCODE 9
Protocol: EPC Class 1 Gen 2; ISO 18000-6C protocol compliant
EPC Memory: 96 bit
Data retention of IC: 50 Years
Write endurance of IC: 100,000 cycles
Operating Temperature: -40 °C to +85 °C
Storage Temperature: -40 °C to +85 °C
Application: Apparel management , Logistics management , Document management , Shoes control management, Assets management etc. .
Options: Encoding and Printing Barcode/QR Code/LOGO etc.
